Ten Lines Wire Offshore Pipeline Counterweight Welded Wire Mesh

Name: Ten Lines Wire Offshore Pipeline Counterweight Welded Wire Mesh
Brand: REINFORCE
Price: 1.7 USD

Wholesale Ten Lines Wire Offshore Pipeline Counterweight Welded Wire Mesh from china suppliers

Brand Name : REINFORCE

Model Number : REINFORCE-52

Certification : ISO 9001

Place of Origin : China

MOQ : 2000 square meters

Price : USD 1.7-3/ square meter

Payment Terms : T/T

Supply Ability : 2000 square/day

Delivery Time : 14-20days

Packaging Details : steel strip six rolls each bundle

product : Ten Lines Wire Offshore Pipeline Counterweight Welded Wire Mesh

Key Words : Offshore Pipeline Counterweight Welded Wire Mesh

Color : Sliver

Wire Diameter : 2.0 Mm, 2.2 Mm, 2.4 Mm, 2.7 Mm Etc.

Hardness Range : 485N/mm2~650N/mm2

Zinc Coating : 40-60g/m2

Middle line wire pitch : 25.4 mm

Length per roll : 140m, 280m or special custom

Line wire quantity : 6lines, 8lines or 10lines

Hole size : 25.4mm x 67mm or special custom

Contact Now

Ten Lines Wire Offshore Pipeline Counterweight Welded Wire Mesh

Offshore Pipeline Counterweight Welded Wire Mesh

Offshore Pipeline Counterweight Welded Wire Mesh is also called concrete weight coating mesh (CWC mesh). The material of the mesh is low carbon steel with galvanized coating.

Offshore Pipeline Counterweight Welded Wire Mesh Normal Export Specifications:

Product Name	Offshore Pipeline Counterweight Welded Mesh
Mesh kind	Welded mesh
Material	Low carbon steel wire
Wire diameter	2.0mm-2.7mm or custom
Hole size	25.4mm x 67mm
Surface treatment	hot dipped galvanized
Zinc coated	70gm²~500g / m²
Middle line wire pitch	25.4 mm
Cross wire pitch	67 mm or 92.4 mm
Both sides line wire pitch	25.4 mm or 50.8 mm
Line wire quantity	6lines, 8lines or 10lines
4 types pipeline reinforced mesh	HF-N, HF-T, HF-L and HF-W
Exposed Wire Edge	≤ 2.5 mm
Hardness range	485N/mm2~650N/mm2
Roll Diameter	700mm-1150mm
Width dimensions	190.5mm
Length dimensions	140m/280m
Use life	Above 20years
Sample	Supply free sample to test quality

Offshore Pipeline Counterweight Welded Wire Mesh Product Applications

It's normally used for the reinforcement on concrete weight coating of offshore oil and gas pipeline, popular in the world marine construction industry. It is applicable for the compression and impingement coating process. The line wires are deeply crimped to facilitate the concrete applications.

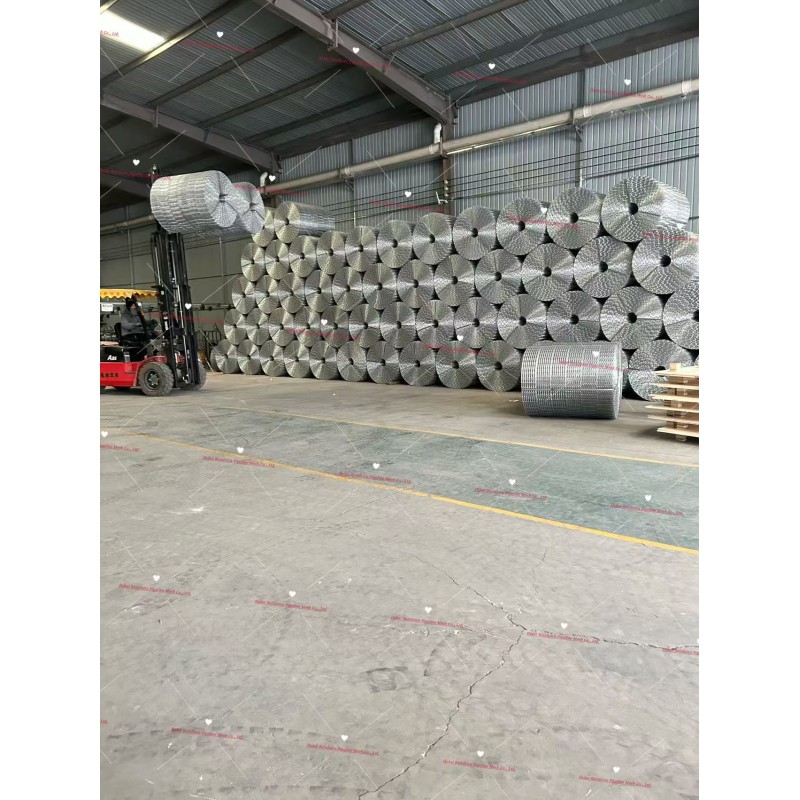

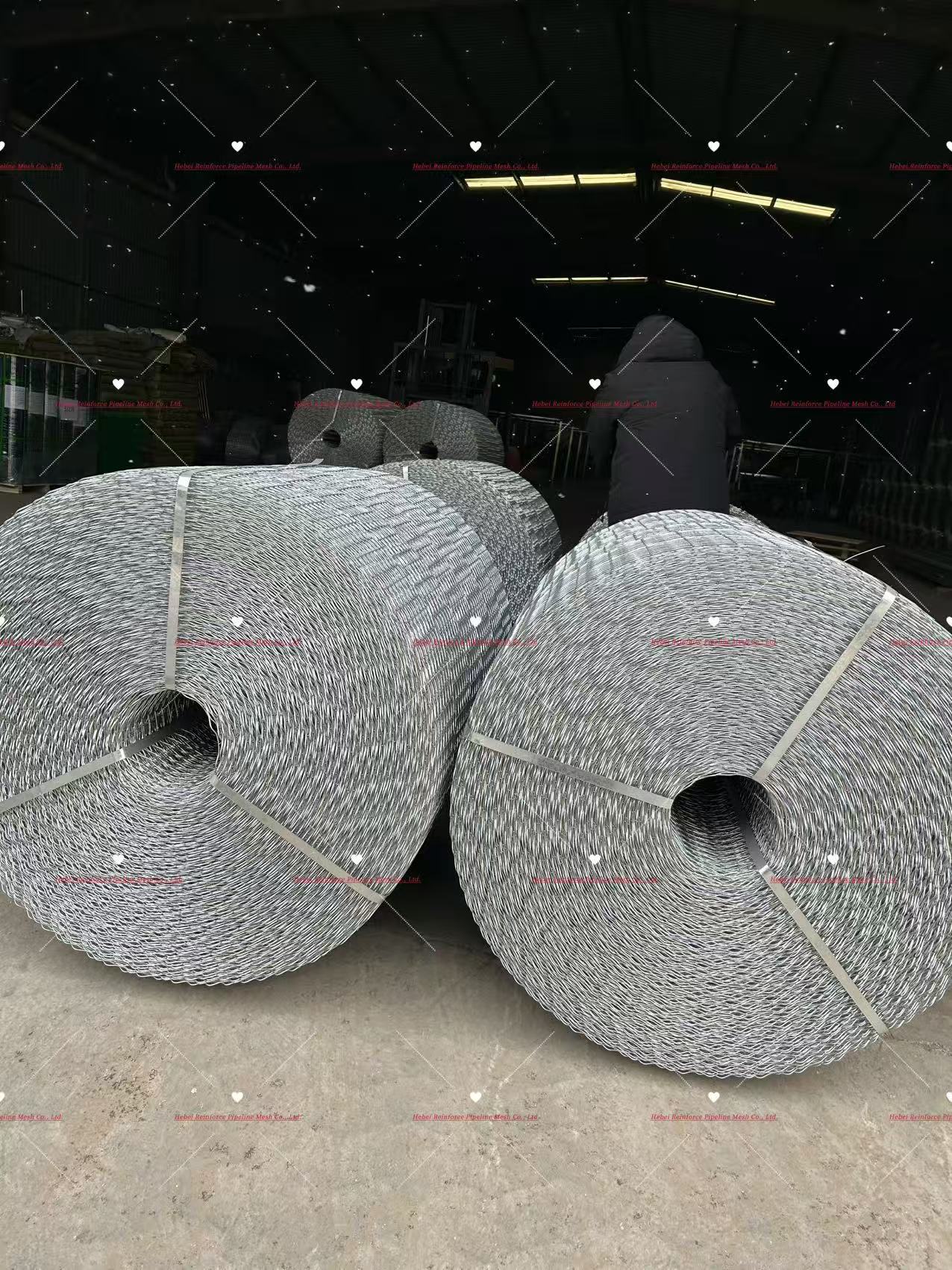

Offshore Pipeline Counterweight Welded Wire Mesh Package:

usual packing tape to combine 6 small rolls into one large roll,which saves container space.

Ten Lines Wire Offshore Pipeline Counterweight Welded Wire Mesh
